Products – Little Red Mill

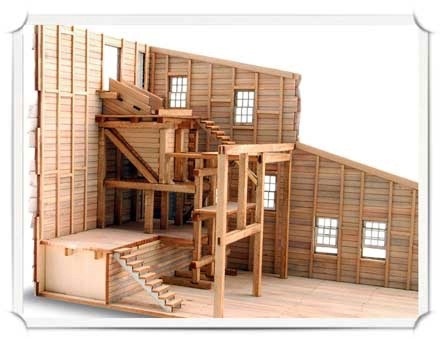

Little Red Mill-interior view right side
wild west models notepad paper
Wild West Models Page Title Bar
Wild West Models - Sticky Notes product scales

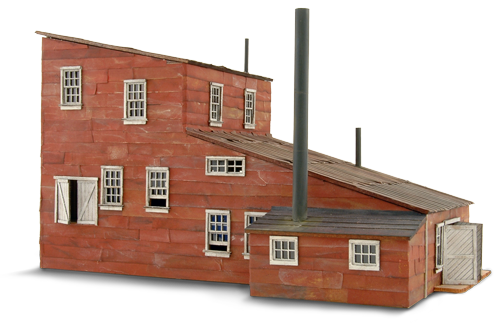

Little Red Mill- wild west models

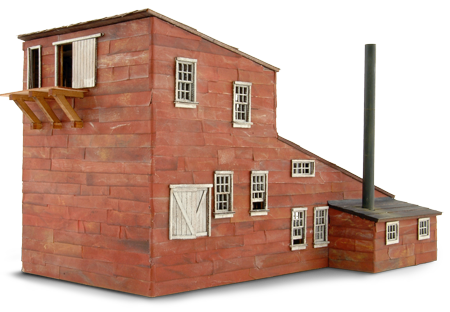

Little Red Mill-rear view

Kit #223

Currently being re-designed for full interior detailing

Kit #323


(be sure to scroll all the way down!)

HO scale Little Red Mill

Interior detailing shown above and below

Details include: Interior etched floor boards,

     interior wall framing, ore bin, platforms,

     stairs, a grizzley, stamp frames, removable

     roofs, plank siding that is engraved on the

     interior and exterior wall surfaces, boiler

     room, windows and doors that can be

     positioned open or closed and include

     laser-cut glazing, and can be built with the

     metal siding or without!

Our trademark EASY to follow FULLY

     Illustrated step-by-step instructions make

     building easy!

Precision Laser cut wood construction.

Includes our paper corrugated roofing

     material, "metal" sliding and tar paper

     roofing.

Footprints

          N = N/A

          HO = 5.0" x 8.3"

          S = 6.8” x 11.3”

          O = 9.0” x 15.0”

Based on measurements by Joe Crea and

     Mike Pyne. Additional material provided by

     Keith Pashina.

With all of kits, we include some way for you

     to customize our structures right out of the

     box.

This allows you to add you own personal

     touch to fit your layout. See “The Design”

     section below for some of the included

     options.

Features:

Kit #823


Kit #123


(contributions from Joe C. and Keith P.)

The “Little Red Mill,” officially the Quartz Hill and Nevada Mill, is one of the few remaining mill structures still standing in the Central City – Black Hawk area of Gilpin County, Colorado. This historic region has a rich history of gold mining and railroads. Gold mining began here in the 1850’s, and Gilpin County was one of the earliest and most productive districts in the state. Later, as the mining industry expanded, the Colorado Central (later the Colorado and Southern) and Gilpin Tramway railroads served this area.

The Quartz Hill and Nevada Mill is on the south side of Gregory Gulch, between Black Hawk and Central City. It is still standing, as of January 2010, but it is for sale and is located in the heart of the new gold rush – the gambling district. It likely will be demolished and a casino built in its place in the not-too-distant future.

Although no records have been found of this mill having ore shipped from the Colorado & Southern or the Gilpin Tram, the grade behind the mill (and the remaining retaining wall) hint that this mill could have been served by wagon.

The “Little Red Mill”, like many other mine and mill structures in this area, is constructed of rough-sawn wood sheathing over a heavy timber frame. This was then covered at some point with flat metal siding and painted to further repel the harsh weather. No machinery remains inside, only timbers that once supported the mill’s operations. (red–iron oxide paint was commonly used to repel the elements because it was both economical and provided the longest protection–the reason we call it the “Little Red Mill!)

Today, the hillsides of Gilpin County, once stripped of their wood for the mines, have regrown with pines and aspen trees, and the mill silently weathers away in the sun. But someday, this mill will succumb, like many others, to time, the elements, and/or progress of the area.

For actual pictures of this structure, visit our Little Red Mill gallery page.

History:

HO scale Little Red Mill

Little Red Mill-interior view left view

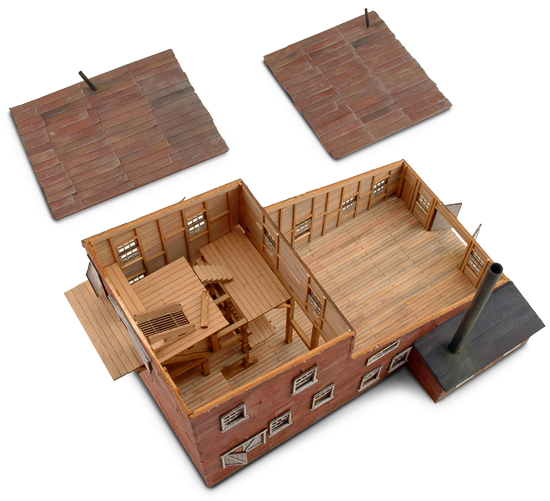

Little Red Mill-top view interior

Interior view:

Ore bin, grizzley, stairs, platforms, stamp frames, interior structure, posts & beams, raised second level, & boiler house – all included!

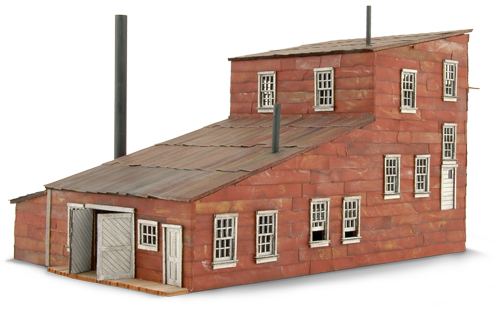

Little Red Mill-right exterior view

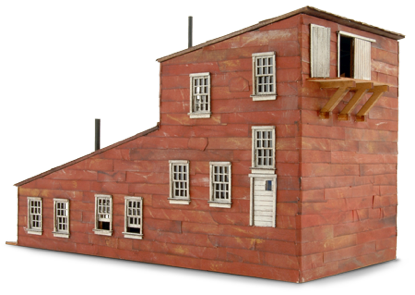

Little Red Mill-view from the back

The Design:

Today, the existing structure has been converted to a storage/junk building on the inside. We analyzed what was left of the interior framing of the mill, as well as old pictures, to come up with the side boiler addition and window/door placements. On our gallery page, we have included pictures of the structure as it is standing today to aide in building and customizing this mill to your layout.

We have also included many options for this kit. As with all our mining structures, this mill can be built with the wood siding exposed or covered with the metal siding.

Boards are engraved on the inside walls, as well as, the exterior walls.

Little Red Mill-right side view
